095000-8220 Diesel Fuel Injector for Toyota Hilux 3.0L D-4D

095000-8220 Denso diesel fuel injector for Toyota Hilux 3.0L D-4D

The 095000-8220 Denso diesel fuel injector is supplied by Rayfuel as an aftermarket replacement for selected Toyota Hilux 3.0L D-4D diesel applications. It cross-references Toyota OE number 23670-0L050 and is intended for part-number-matched common rail repair. Diesel repair workshops, parts wholesalers and distributors can find related products in our Denso common rail injector range.

095000-8220 Denso diesel fuel injector identification

• Primary part number: 095000-8220
• Toyota OE reference: 23670-0L050
• Vehicle reference: Selected Toyota Hilux applications
• Engine reference: 3.0L D-4D; confirm the complete engine code
• Product type: Common rail diesel fuel injector
• Product brand: Rayfuel

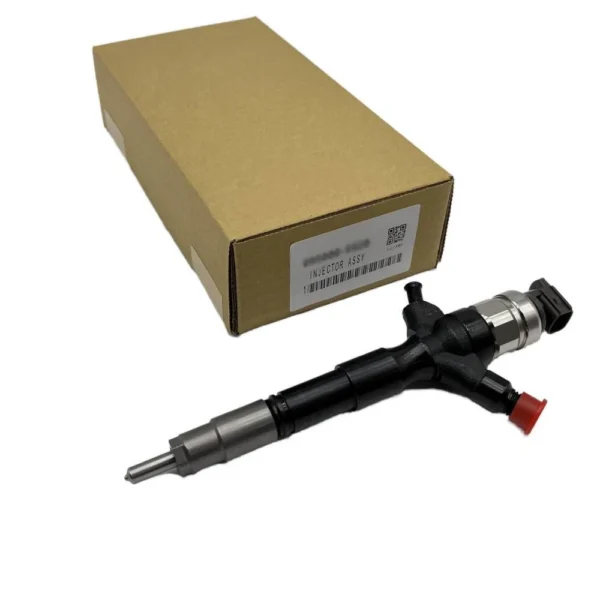

Compare both 095000-8220 and 23670-0L050 with the markings on the injector removed from the vehicle. The Denso wording used in the SEO fields describes the injection-system and part-number family; it does not claim that the supplied Rayfuel aftermarket replacement is a genuine Denso or Toyota boxed component. The selected product images show the body, electrical connector, high-pressure inlet and nozzle profile for visual comparison.

Toyota Hilux 3.0L D-4D application

Toyota has used 3.0-liter KD-series common rail diesel engines in selected Hilux markets. Many buyers associate these applications with the 1KD-FTV engine code, but vehicle market, production year, emissions specification, engine calibration and injector generation can change the required part. A Hilux 3.0 D-4D description alone does not prove that every version uses the same injector.

Before ordering, verify the complete number on the old injector and confirm the VIN or frame code, production year, market and engine designation. Compare the connector shape, fuel connections, mounting profile and nozzle end with the photos. If the removed injector has a different number, obtain a confirmed supersession or cross-reference instead of selecting only by vehicle model or engine capacity.

Common rail injector function

A common rail injector meters pressurized diesel fuel and delivers it into the combustion chamber according to commands from the engine control system. Correct fuel quantity, injection timing and spray behavior support starting, stable idle, balanced combustion and normal engine response. Wear, contamination, internal leakage or an electrical fault may interfere with these functions, but the 095000-8220 Denso diesel fuel injector should only be replaced after suitable diagnosis.

Common signs an injector may need checking

• Hard starting or extended cranking
• Rough idle or uneven cylinder contribution
• Reduced power during acceleration or under load
• Excessive black, white or gray exhaust smoke
• Abnormal diesel combustion noise
• Fuel leakage around the injector or sealing area
• Injector-related diagnostic trouble codes

These symptoms do not prove injector failure. Similar conditions can result from low rail pressure, wiring faults, contaminated fuel, poor compression, intake restrictions or other engine problems. Scan-tool data, return-flow measurement, electrical inspection and professional bench testing may be required before replacement.

Installation and calibration

Installation should be completed by a qualified diesel technician using clean working practices. Protect all high-pressure connections from contamination, inspect the injector pipe and replace required sealing washers or related service parts. Follow the tightening procedure specified for the exact Toyota engine and vehicle. Some Hilux configurations may require injector compensation or calibration information to be registered with suitable diagnostic equipment, while procedures vary by model and production version. Do not assume coding is always required.

Before you order

Please confirm OE number, engine model or old part photos before ordering. Verify 095000-8220 and 23670-0L050 against the removed injector, then confirm the Hilux model, complete engine code, year and market. Toyota’s official KD diesel technology information identifies a 3.0-liter KD diesel engine used in the Hilux, but final injector fitment must still be established by exact part number. Send clear photographs and vehicle information through the Rayfuel contact page when you need compatibility support.

The 095000-8220 Denso diesel fuel injector is intended for OE-number-matched aftermarket replacement in compatible Toyota Hilux 3.0L D-4D applications. Final suitability depends on exact vehicle, engine and old-part identification.

Rayfuel supply and support

Rayfuel supplies diesel injection parts to repair shops, wholesalers and distributors worldwide. Support includes number comparison, photo-based fitment checks, quantity quotations, mixed-parts inquiries and secure export packaging. Contact us before shipment if you need several injectors or confirmation for a specific Toyota market.
