23670-11060 Diesel Fuel Injector for Toyota Hiace Hilux 2KD-FTV

23670-11060 diesel fuel injector for Toyota Hiace Hilux 2KD-FTV 2.5D

The 23670-11060 diesel fuel injector is supplied by Rayfuel as an aftermarket replacement for selected Toyota Hiace and Hilux diesel applications associated with the 2KD-FTV 2.5D engine. It is intended for OE-number-matched common rail repair and replacement rather than selection by vehicle name alone. Repair workshops, wholesalers and distributors can find related products in our common rail injector range.

23670-11060 diesel fuel injector identification

• Primary part number: 23670-11060
• Alternative number format: 2367011060
• Vehicle references: Selected Toyota Hiace and Hilux applications
• Engine reference: 2KD-FTV 2.5D diesel engine
• Product type: Common rail diesel fuel injector assembly
• Product brand: Rayfuel

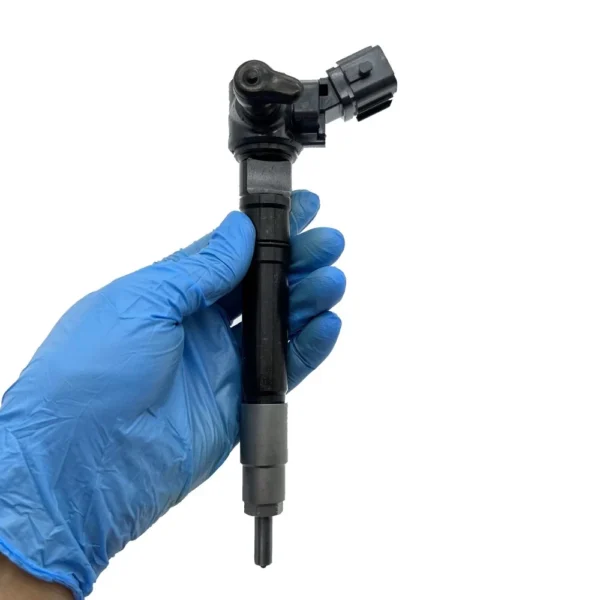

The references 23670-11060 and 2367011060 describe the same Toyota-style number with and without punctuation; they are not two different injector specifications. The supplied photographs provide visual references for the body, electrical connector, return connection and nozzle profile, but the full product number is not readable in the images. Confirm the marking on the physical part before publication, ordering or installation.

Toyota Hiace, Hilux and 2KD-FTV application

Toyota official information identifies the 2KD-FTV as a 2.5-liter diesel engine used in selected Hiace configurations. The engine family has also been associated with certain Hilux markets. However, Toyota vehicles can use different injector versions according to model code, production date, destination market, emissions specification and engine calibration. A 2KD-FTV or 2.5D description by itself does not establish complete compatibility.

Before ordering, inspect the number on the injector removed from the engine and confirm the vehicle model, VIN or frame code, engine designation and production year. Compare the electrical connector, body shape, mounting arrangement, return connection and nozzle end with the product images. If the existing injector carries a different number, obtain a verified supersession or cross-reference instead of selecting only by vehicle or engine description.

Common rail injector function

A common rail injector meters pressurized diesel fuel and delivers it into the combustion chamber according to commands from the engine control system. Correct fuel quantity, timing and spray behavior support reliable starting, stable idle, balanced combustion and normal response under load. Wear, contamination, internal leakage or an electrical fault may interfere with these functions, but replacement should follow suitable diagnosis.

Common signs an injector may need checking

• Hard starting or extended cranking
• Rough idle or uneven cylinder contribution
• Reduced power during acceleration or under load
• Excessive black, white or gray exhaust smoke
• Abnormal diesel combustion noise
• Fuel leakage around the injector or sealing area
• Injector-related diagnostic trouble codes

These symptoms do not prove injector failure. Similar conditions may result from low rail pressure, wiring faults, contaminated fuel, poor compression, air-intake restrictions or other engine problems. Scan-tool data, return-flow measurement, electrical inspection and professional bench testing may be needed before replacement.

Installation and calibration

Installation should be completed by a qualified diesel technician using clean working practices. Protect all high-pressure fuel connections from contamination, inspect the injector pipe and replace required sealing washers or related service parts. Follow the tightening procedure specified for the exact Toyota engine and vehicle. Some 2KD-FTV configurations may require injector compensation or calibration information to be registered with compatible diagnostic equipment, while procedures vary. Do not assume coding is always required.

Before you order

Please confirm OE number, engine model or old part photos before ordering. Verify 23670-11060 against the removed injector, then confirm the Hiace or Hilux model, 2KD-FTV engine version, production year and market. Toyota’s official Hiace 2KD-FTV information confirms 2.5-liter diesel applications, but final injector compatibility still depends on exact part identification. Send clear photographs and vehicle information through the Rayfuel contact page when you need a fitment check.

The 23670-11060 diesel fuel injector is intended for OE-number-matched aftermarket replacement in compatible Toyota Hiace and Hilux 2KD-FTV 2.5D applications. It is supplied under the Rayfuel product brand, and no unsupported genuine Toyota or injection-system manufacturer claim is made.

Rayfuel supply and support

Rayfuel supplies diesel injection parts to repair shops, wholesalers and distributors worldwide. Support includes number comparison, photo-based fitment review, quantity quotations, mixed-product inquiries and secure export packaging. Contact us before shipment when you need several injectors or confirmation for a particular vehicle market.
