294000-0744 22100-E0051 Denso HP3 Common Rail Fuel Pump for HINO

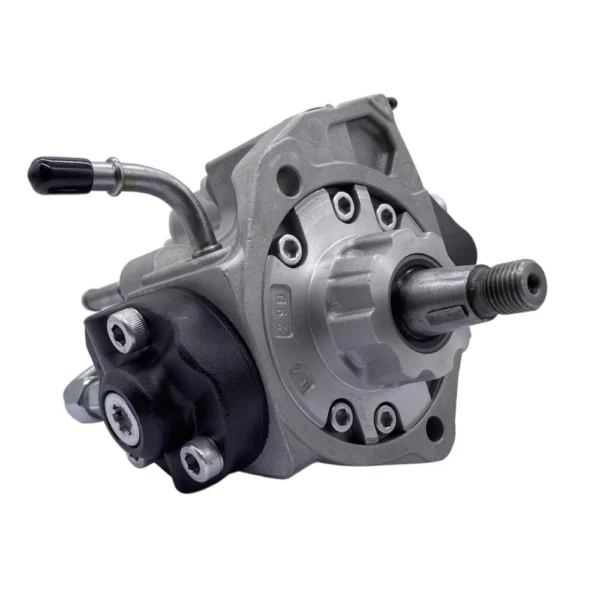

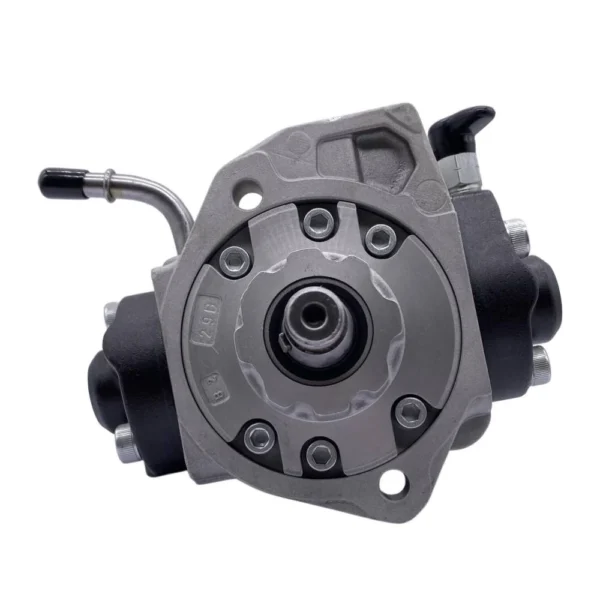

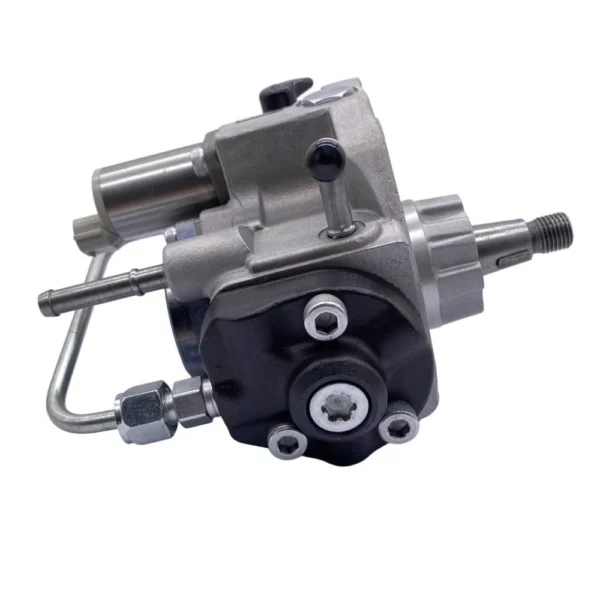

294000-0744 Denso common rail pump for HINO

294000-0744 Denso common rail pump is an aftermarket replacement listed for HINO. It is intended for a Denso common rail diesel system and is not a mechanical VE distributor pump. Buyers should compare the complete pump number, OE reference, drive arrangement and connections with the unit removed from the engine. Browse related common rail fuel pumps supplied by Rayfuel.

Product identification

When reviewing 294000-0744 Denso common rail pump, confirm the identification plate and every available cross-reference. Denso system numbers and vehicle or equipment OE numbers may use different formatting, but an incomplete or approximate match is not enough for a high-pressure fuel-system component.

• MPN: 294000-0744
• Pump family: Denso HP3 common rail supply pump
• OE / cross-reference numbers: 22100-E0051
• Listed application: HINO
• Product type: Common rail high-pressure supply pump

This listing uses Denso as the confirmed fuel-system reference. The selected WooCommerce product brand remains Rayfuel, and the wording does not claim that the aftermarket replacement is a genuine or authorized Denso product.

Application and fitment checks

The application information for HINO is a starting point for verification. Engines and machines can use different pump versions according to production date, emissions specification, ECU calibration and regional configuration. Compare the complete number, mounting points, drive coupling, fuel ports and electrical or control-valve connections.

A common rail supply pump feeds pressurized fuel to the rail; it does not distribute a separate timed outlet to each cylinder like a conventional mechanical pump. The external construction and number family should therefore be checked together before ordering.

Denso common rail supply-pump function

The supply pump draws filtered diesel fuel from the low-pressure circuit, raises the pressure and delivers fuel to the common rail. The rail and electronically controlled injectors then manage injection events under ECU control. Accurate pressure regulation depends on the pump, control valve, sensors, rail, injectors and return circuit working as a system. Denso’s common rail pump information explains the role of this component in the system.

Because internal clearances are extremely small, water, rust, metal debris and poor filtration can damage multiple components. A replacement pump should not be installed until the cause of the original failure and the cleanliness of the complete fuel system have been evaluated.

Common reasons to inspect the system

A qualified technician may inspect the high-pressure system when the engine shows conditions such as:

• Hard starting or rail pressure that builds too slowly.
• Loss of power, unstable running or shutdown under load.
• Diagnostic pressure-control faults after wiring checks.
• Fuel leakage from fittings, seals or the pump assembly.
• Metal particles, water or other contamination in the fuel circuit.
• Return-flow or injector problems affecting commanded rail pressure.

These symptoms do not confirm pump failure by themselves. Filters, fuel supply, sensors, control valves, injectors, wiring and ECU data should be tested with suitable diagnostic equipment.

Installation and system preparation

Common rail fuel systems operate at hazardous pressure. Installation, priming and testing must be completed by a trained diesel technician using the manufacturer’s safety and service procedures. Depressurize the system before opening a high-pressure connection, keep ports capped and use clean tools and approved replacement seals.

Inspect or clean the tank and lines as required, renew the fuel filter and check the rail and injectors for contamination. Flush or replace affected components according to the equipment service information. Reusing contaminated lines or injectors can damage the replacement pump immediately.

Before you order

Please confirm OE number, engine model or old part photos before ordering. Check the complete supply-pump number and application rather than relying on general appearance or an abbreviated reference.

1. Photograph the identification plate and all pump connections.
2. Compare the complete MPN and every available OE reference.
3. Confirm the engine, vehicle or machine and emissions configuration.
4. Use the Rayfuel contact page for a part-number review when information differs.

Rayfuel supply and support

Rayfuel supports diesel repair shops, distributors, wholesalers and equipment owners with pump-number matching and export order assistance. Supply the old pump number, application and clear photos for the most useful review. Fitment guidance is based on the identifiers provided and does not replace professional diagnosis.

294000-0744 Denso common rail pump should be installed only after the complete common rail system is checked for contamination, pressure-control faults and related component damage.
